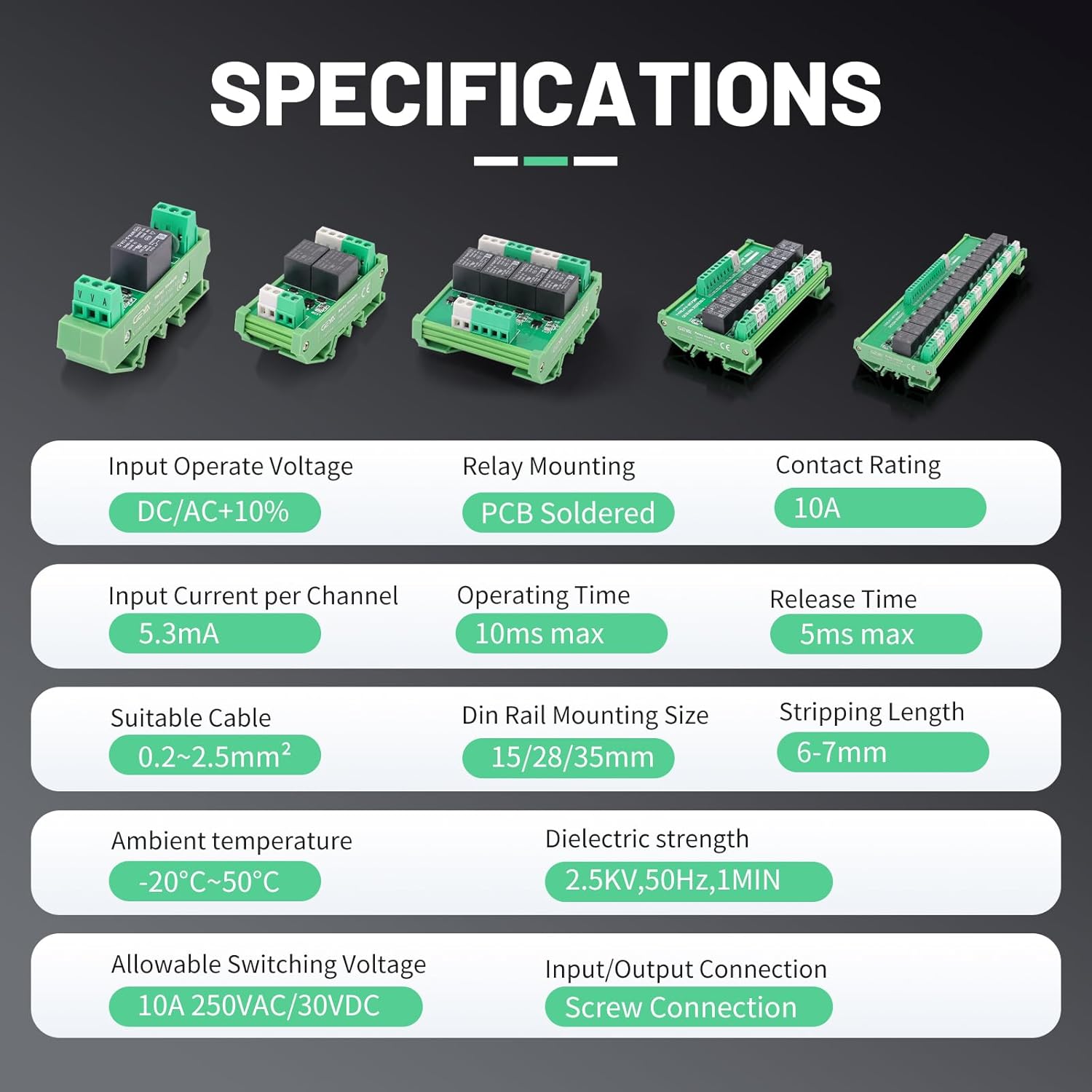

GEYA Relay Module 4 Channel 1 SPDT DIN Rail Mount AC230V Interface Relay Module(FY-T734-230VAC)
Product details
| Management number | 218151382 | Release Date | 2026/05/03 | List Price | US$8.80 | Model Number | 218151382 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- DIN Rail optional 1/2/4/8/16 channels relay interface modules.
- Sub-miniature intermediate power relay,approved TUV,UL and RoHS compliant.
- Switching current upto 10A at 250VAC or 30VDC.
- Input connections by screw terminal block.NPN&PNP in common use, AC&DC in common use.
- Relay status indicator LED,surge suppression protection and overvoltage protection are provided for each relay channel.
| Wattage | 1 watts |
|---|---|
| Brand Name | GEYA |
| Part Number | FY-T734C-230VAC |
| Coil Voltage | 230 Volts |
| Contact Type | Spdt |
| Manufacturer | ZHEJIANG GEYA ELECTRICAL CO.,LTD |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 10 Amps |
| Operation Mode | Automatic |
| Specification Met | UL, din |
| Maximum Switching Current | 10 Amps |
| Maximum Switching Voltage | 250 Volts |
