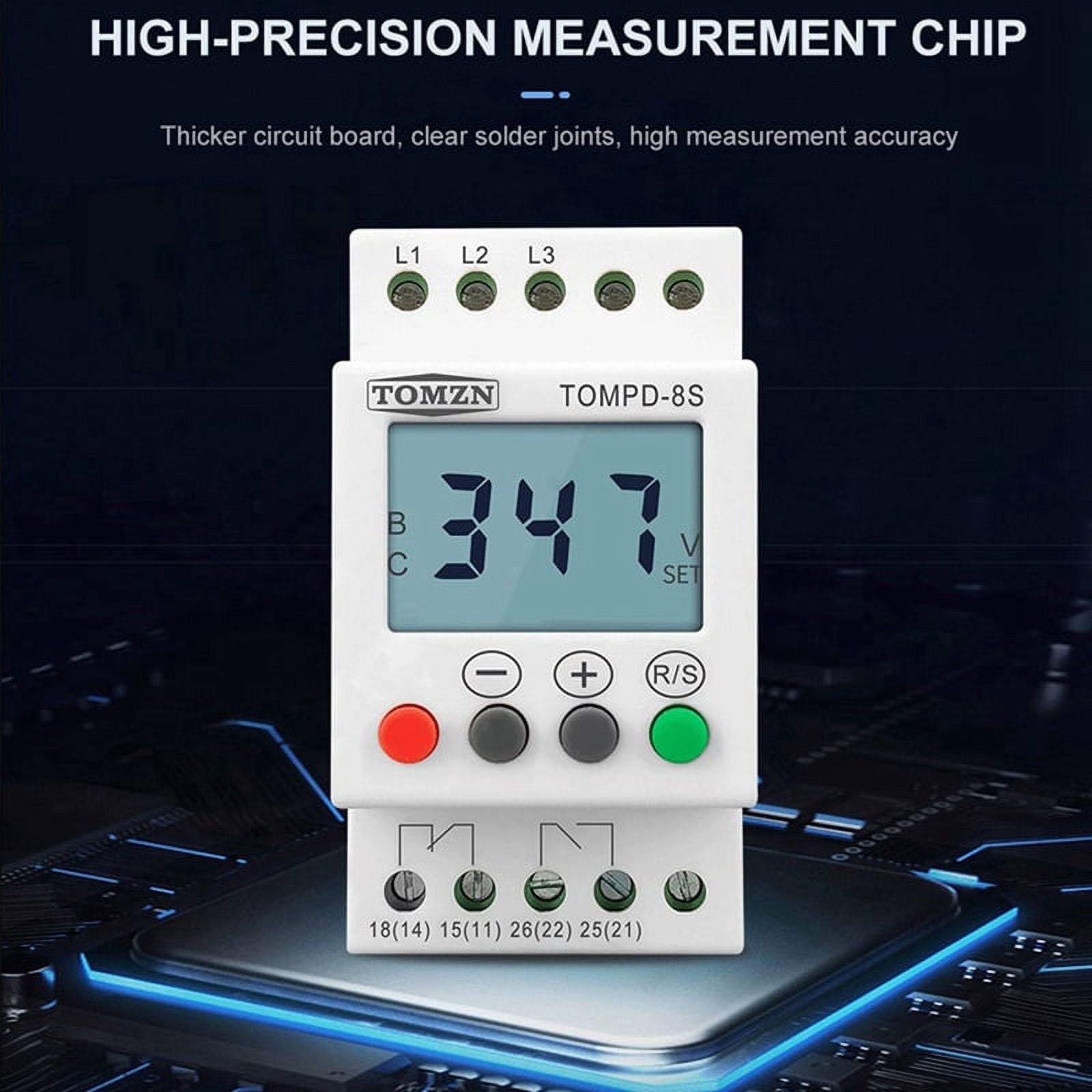

2X 3 Phase Din Rail Adjustable Under Over Voltage Protector Voltage Monitoring Sequence Protection Relay
Product details
| Management number | 231002517 | Release Date | 2026/06/18 | List Price | US$10.93 | Model Number | 231002517 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

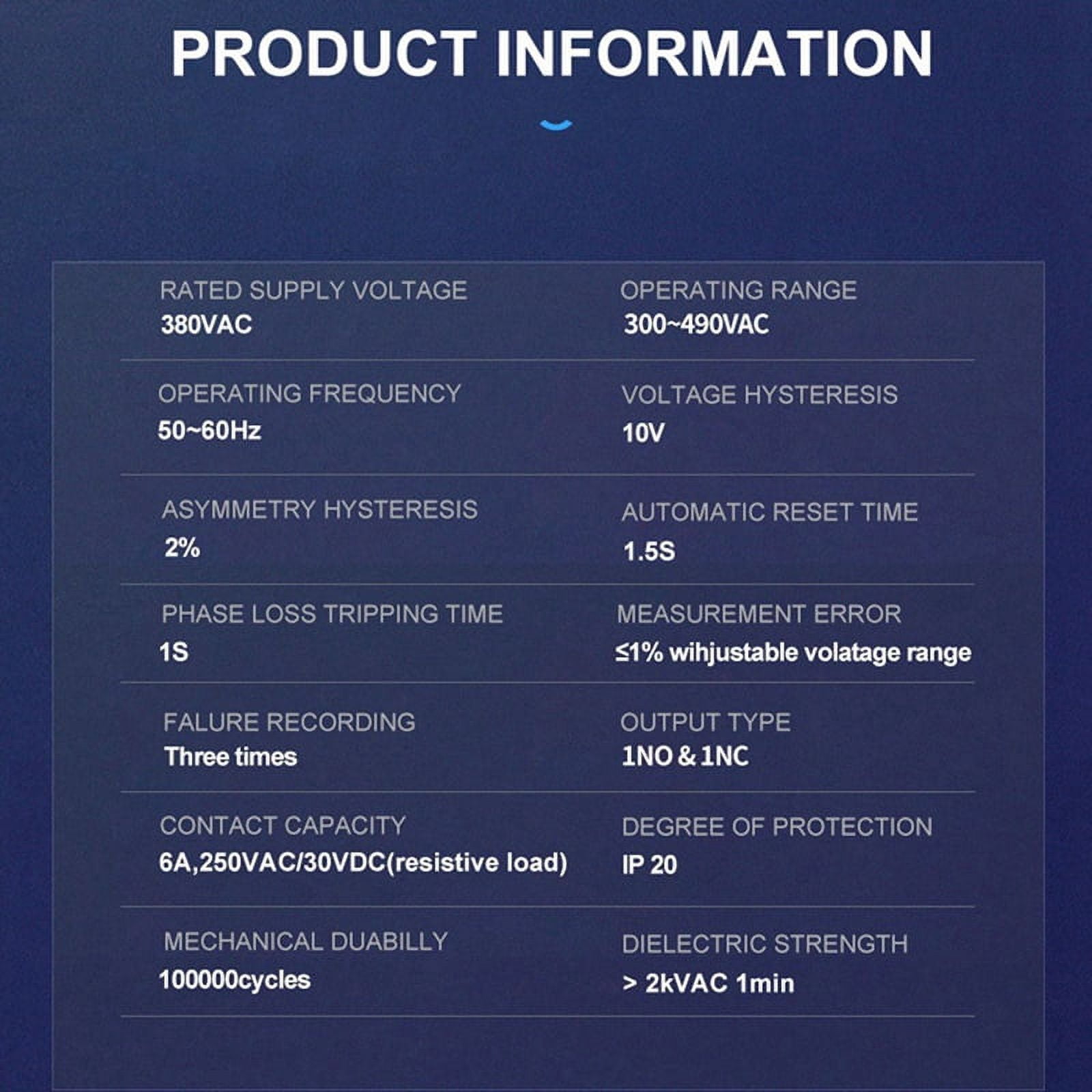

Protection functions: yes<br>Phase loss (fault)<br>Phase sequence (inversion)<br>Phase unbalance (asymmetry)<br>Low voltage<br>Overvoltage<br>Applications: Pumps, Fans, Refrigeration Unit, Blowers, Motors, Compressors, Elevators, Elevators, , Mining Excavators and Conveyors<br>Rated voltage: 380V 50-60Hz, operating range: 300-490VAC<br>Main component: Voltage relay<br>Contact load: Low power<br>Model Number: TOMPD-8S<br>Protection function: SEALED<br>Power Source: AC<br>Usage: <br>colour:White<br>Material:plastic<br>size:80 x 54 x 54mm<br><br>Package Contents:<br>2 x Voltage protector<br><br>Only the above package content, other products are not included.<br>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
- Micropro cessor technology offers highly accurate and repeatable protection

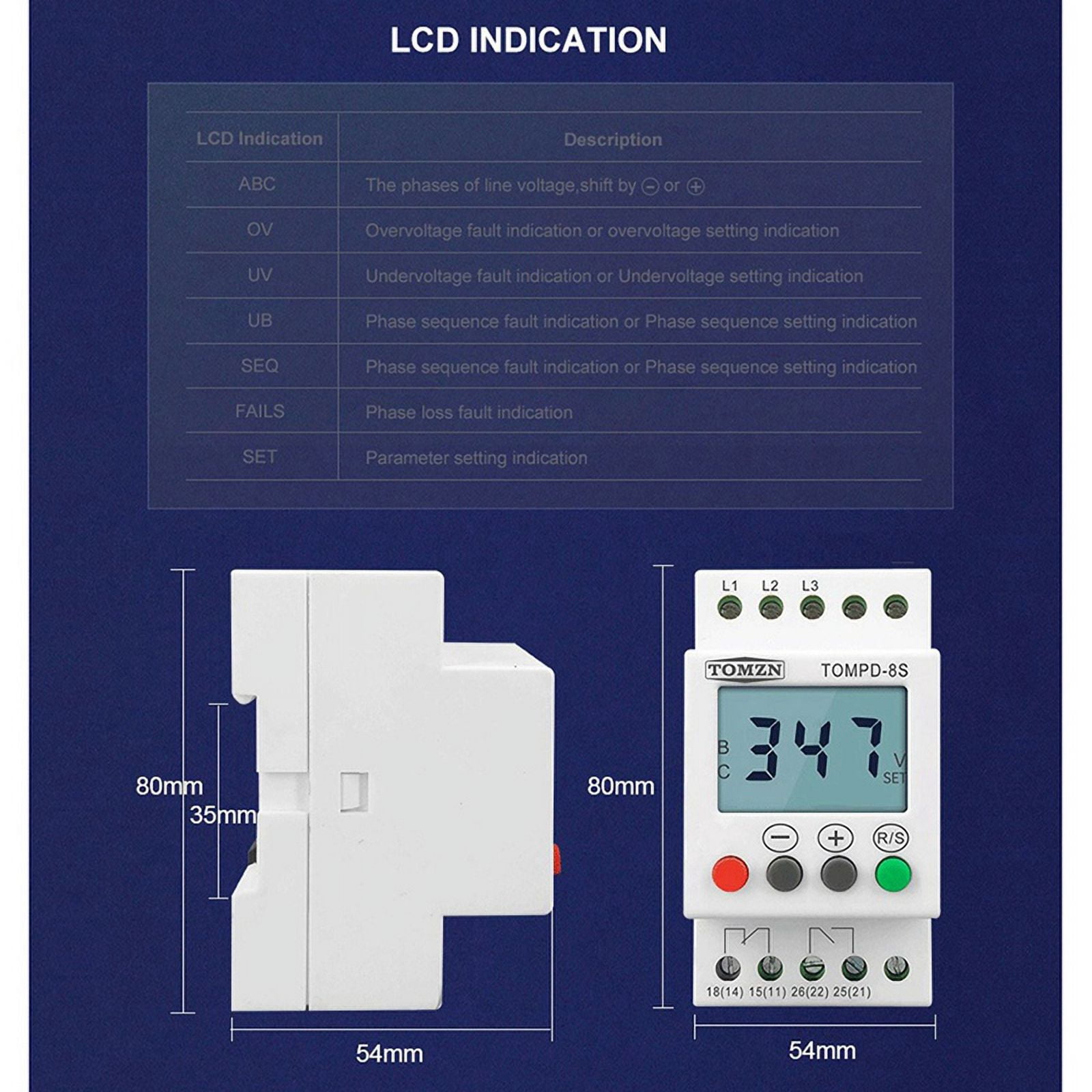

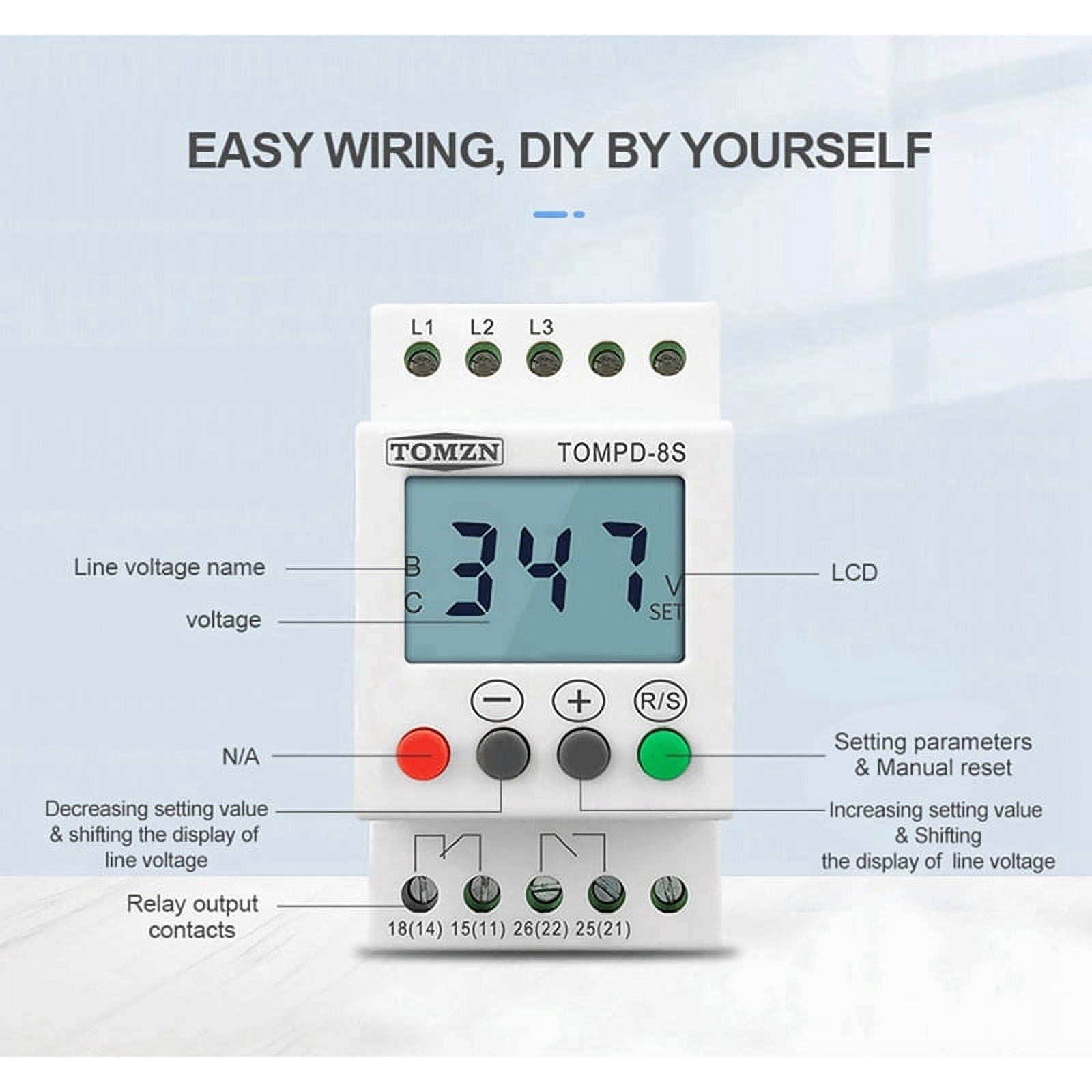

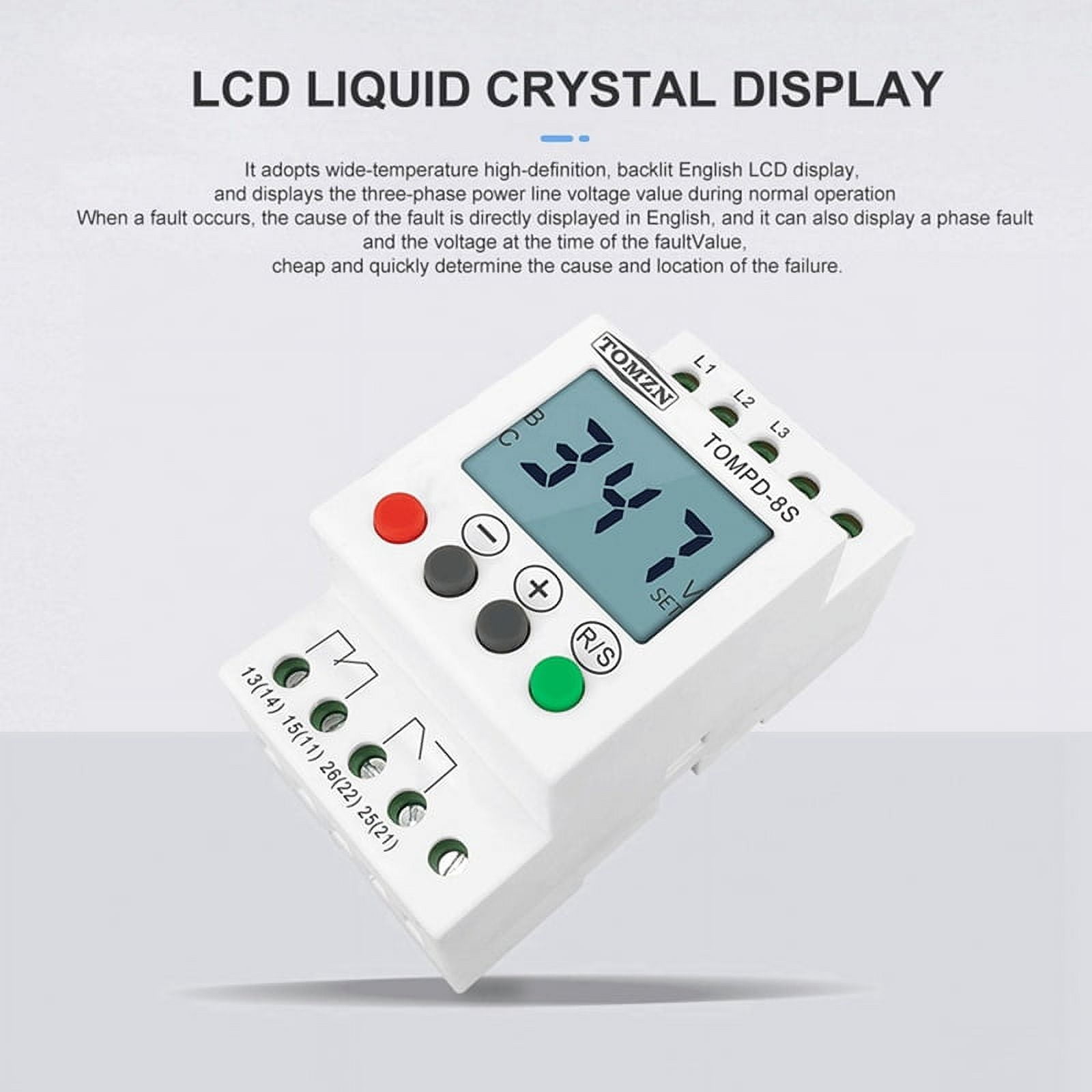

- Integrated LCD and keypad provide accurate setup. 43mm compact modular housing

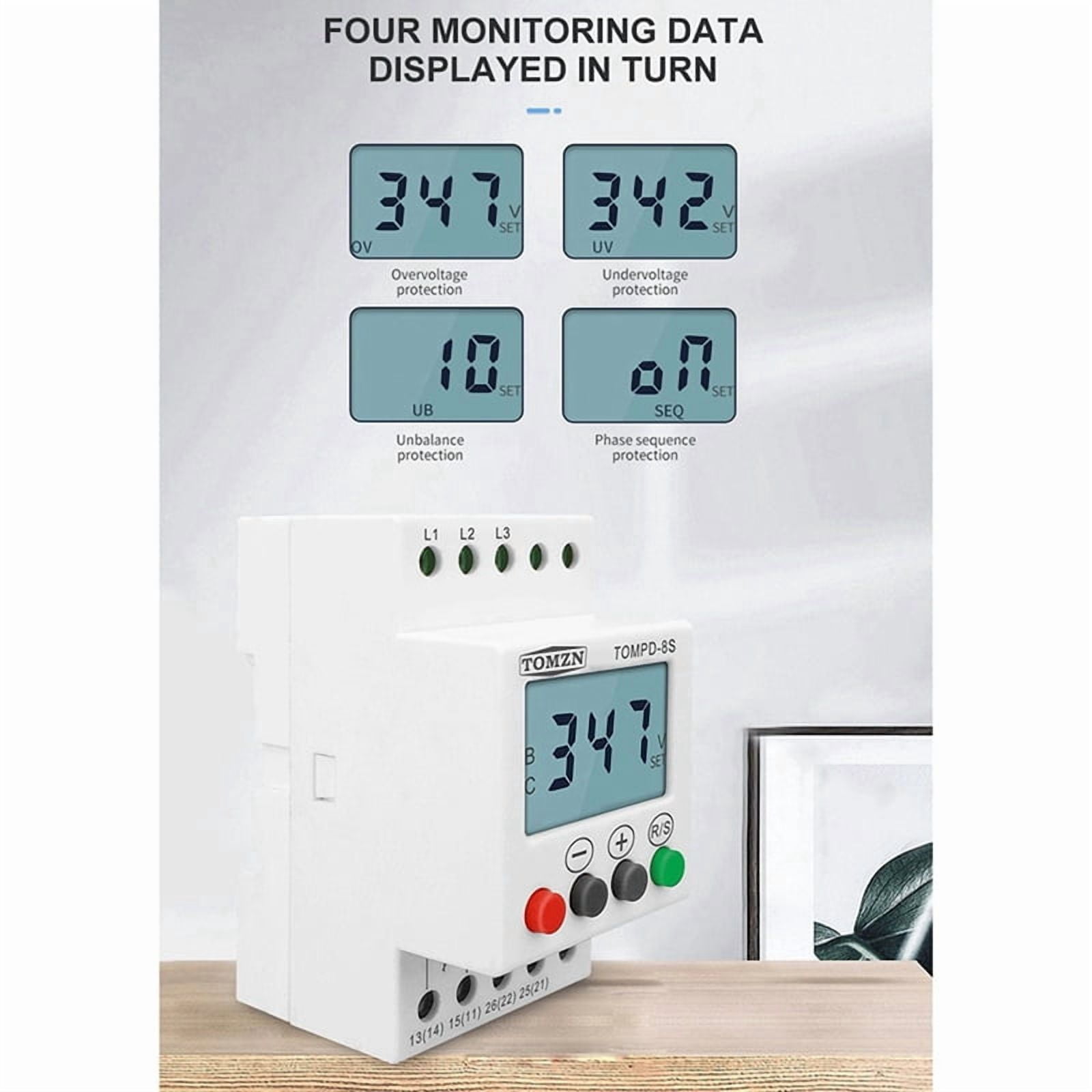

- Adjustable overvoltage and undervoltage, phase unbalance threshold. Independently adjustable delay time for overvoltage, undervoltage phase unbalance
- Adjustable reset method Automatic reset manual reset
- 1 NO & INC contacts. Fault recording with the last 3 faults
| Brand | Unbranded |
|---|
